IRON DOG® N°01
A friend for life
Find now a furnace builder

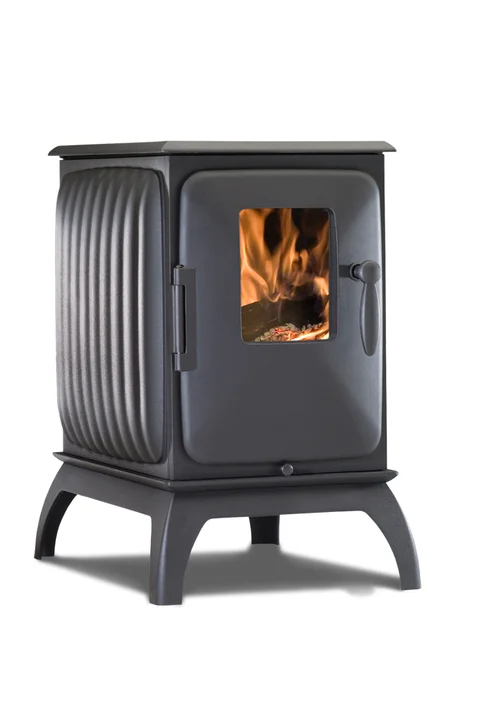

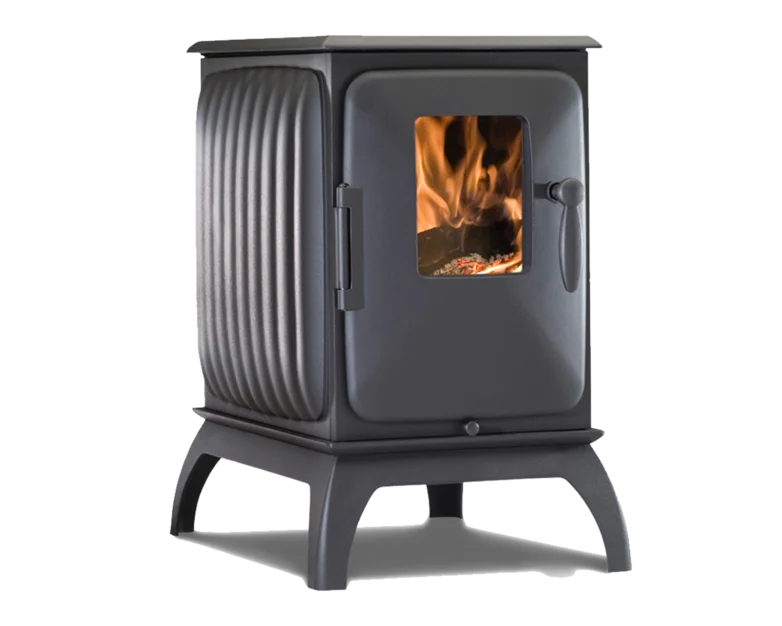

IRON DOG® N°01

A wood stove for every home

Good friends always have a special place in our lives. And the IRON DOG® N°01 achieves great things even in the smallest of spaces. Thanks to its refreshingly natural nature, its very special radiation and its warm nature.

Facts
Data
Wave profile
Accomplishes an optimal utilisation of energy with a special area for the heat exchange
Cooking plate
Ideal with top to warm up and holding
Quality
A special, heat resistant colour coating protects the surface
Robust
Ash pan and screwed parts consist of top-quality stainless steel.
IRON DOG® N°01

Friends for life

Good friends always have a special place in our lives. And the IRON DOG® N°01 does a great job even in the smallest of spaces. Thanks to its refreshingly natural nature, its very special radiation and its warm nature.

Learn more
IRON DOG® N°01

Technical specifications

Rated heat power7.0 kW
Consumption/h2.0 kg
Room heat consumption50-90 m²
Efficiency82%

Device specifications
Dimensions (h x w x d)680 x 440 x 630 mm
Pane surface (h x w)195 x 150 mm
Firebox opening (h x w)200 x 245 mm
Flue gas connectiontop/rear
Flue pipe diameter130 mm
Permitted fuel quantity1.5-2.5 kg
Firebox depth400 mm
Recommended log lengthmax. 330 mm
Cast-iron weight130 kg

Air flow and cross-sections
Combustion air consumption15 m³/h

Minimum distances
to side wall800 mm
to rear wall (without radiant plate)400 mm
to rear wall (with radiant plate)300 mm
to rear wall (with furnace & radiant plate)100 mm

PermitsEN 13240

*Data determined in EN 13240 test with wood stove with horizontal flue pipe connection, pipe length 35 cm



Go to instruction manuals

Discover more IRON DOGs® in different design variants

IRON DOG® N°02
A radiant furnace
Learn more
IRON DOG® N°04
A dog with a big heart
Learn more
Looking for the perfect IRON DOG®?

Consult your furnace builder to find the right "Iron Dog" for your home.

To furnace builder search
