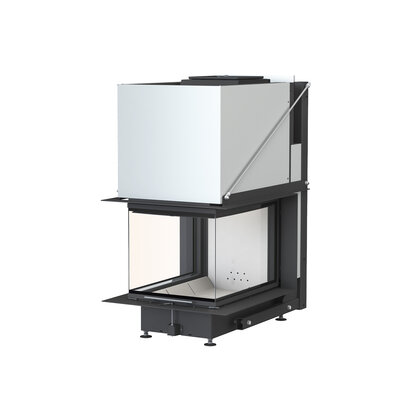

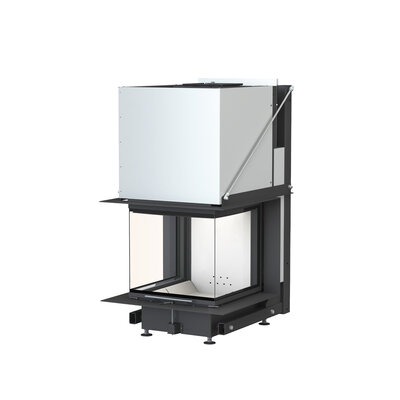

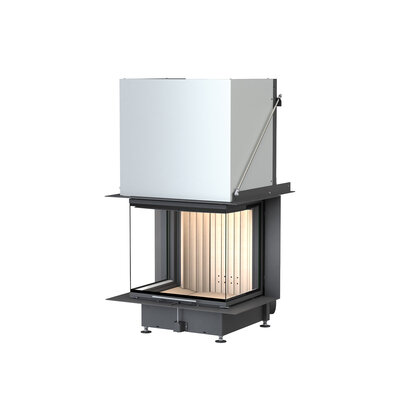

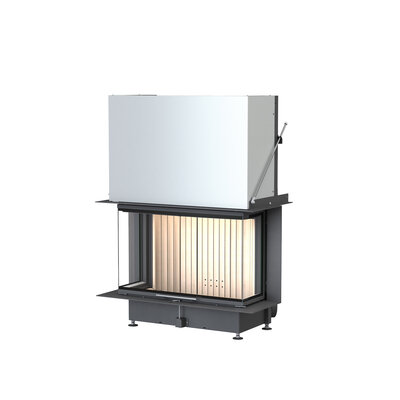

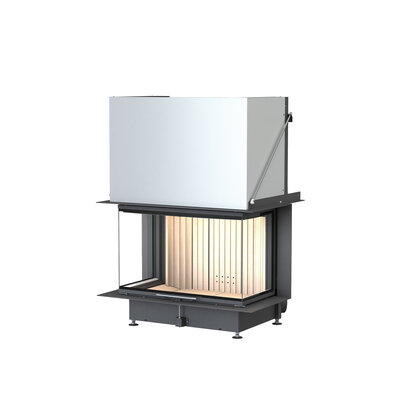

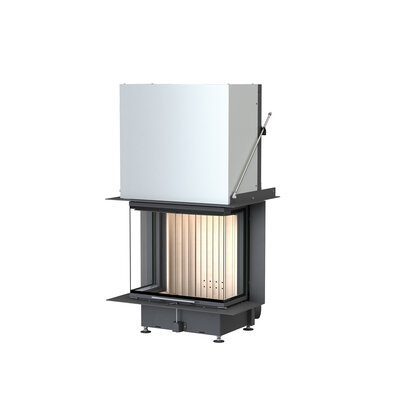

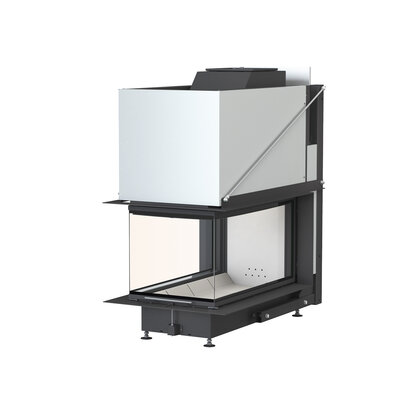

The most visually appealing version of a fireplace: Panorama-Kamin fireplaces from BRUNNER allow a clear view of the wood fire from three sides. The ultimate fire experience - ideal as a room divider or as a thermal architecture highlight in your living space. Some of our Panorama-Kamin fireplaces can also be installed free-floating with the new support frame system.
Stable supports and supporting frames enable new chimney shapes. The variable bracing technology was implemented by BRUNNER for the first time. Panorama-Kamin fireplaces have a circumferentially adjustable mounting frame as a termination to the fireplace cover. This enables a secure construction of the chimney cladding, e.g. with chimney construction panels.
The mounting frame (green) is attached with rods to the ceiling and serves as a support for room-high fireplace surrounds. Statically supported to the floor, this provides an additional, high load (on-site).
Attached to the thermally decoupled support bracket (red), mounting frame (green). Design for static load with a chimney cover up to 235 kg. Version (a) as low room divider, (b) for ceiling-high construction.
For "floating" versions, the support bracket(red) is supplemented with the support unit (green), consisting of the fire table base and the feet for the support bracket. The static load is absorbed by the adjustable feet fixed to the unfinished floor. The support bracket is additionally fixed to the rear wall. The fire table is flush with the lower support plate or does not overhang it by more than 5 cm (1.9 inches).
Read more about this in our press release in "floating fireplaces".
An original open wood fire may be very cosy, but the efficiency is low and the emissions are high. With the invention of the ceramic glass window, the change from the open fireplace to the closed firebox took place. Here, the supply of combustion air is controlled by combustion air controls. The fireplace insert, also known as a heating insert, is the closed combustion chamber. It can either be fitted into a frame or installed in an individually manufactured fireplace with a cladding according to taste. Each BRUNNER heating insert contains years of know-how and experience about the special features of wood gasification, the combustion process as well as the thermal load on all components.
